Project management > Local projects

Contents

1. Overview of local projects

As soon as a user has logged in to the application, the Open Project page appears. Here the user can first differentiate between the tabs Local projects and Server projects.

The overview of local projects includes columns for Project Names, last Modification Date and a further Description.

It also lists the number of alternatives in a project. The buttons on the right edge of an entry lead to a project upload as well as further editing and administration steps.

Figure 1 shows the overview of locally created projects. If the user has not yet created a project, the list is empty.

20250904_local_projects_overview

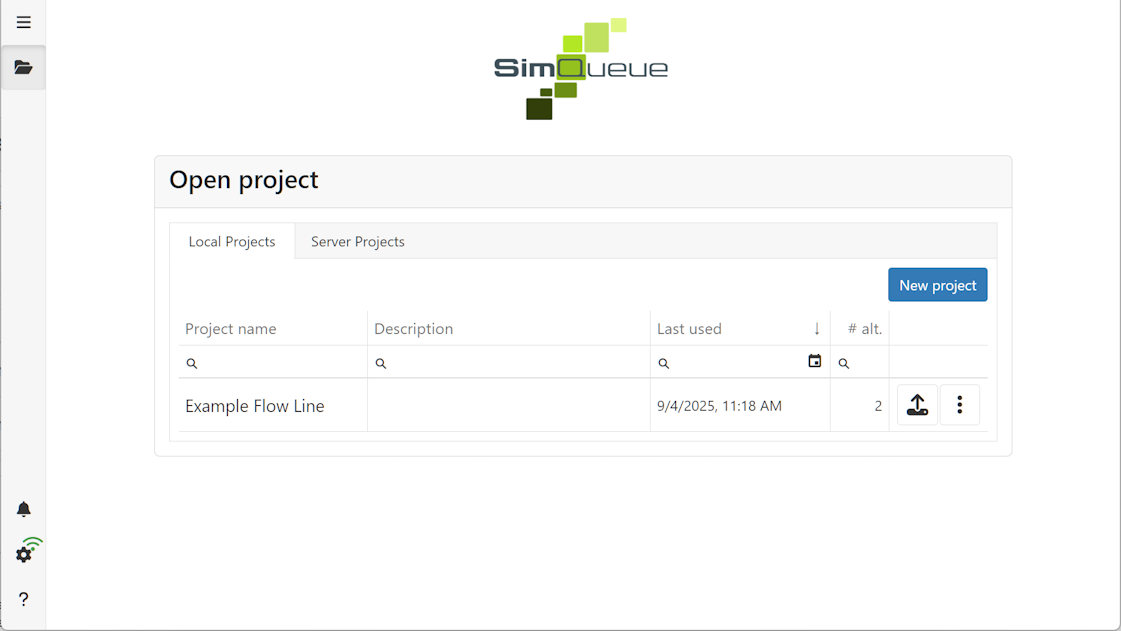

Figure 1 - Overview local projects

If the list of local projects becomes more extensive, the displayed entries can also be restricted by means of selectable filters (for each individual column) as in Figure 2.

In addition, the local overview is restricted to projects of the logged-in user, i.e. if several users work on one computer, a personalized view is guaranteed.

20250904_local_projects_list_filter

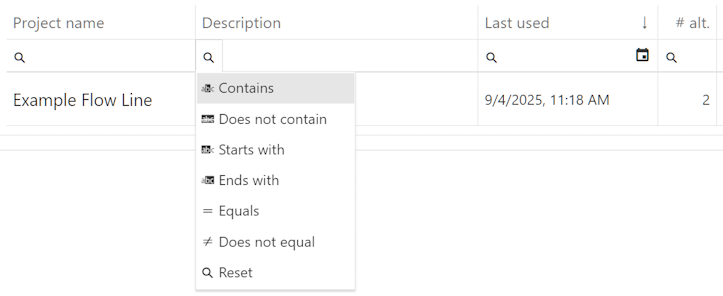

Figure 2 - Project overview filter

2. Create a new project

By clicking on the button

a new local project can be created.

This opens a new window in which either a new project can be created (see Figure 3), or an existing one can be imported. To create a new project, a project name must be assigned first.

This field must be filled out. The remaining field Description is to be filled optionally.

By clicking on the button

the creation of the project is completed.

As a result, the view with the current logic automatically switches to the modeling interface and not to the local project overview. Also when importing, the view automatically changes to the first alternative of a project.

20250904_local_projects_create_new

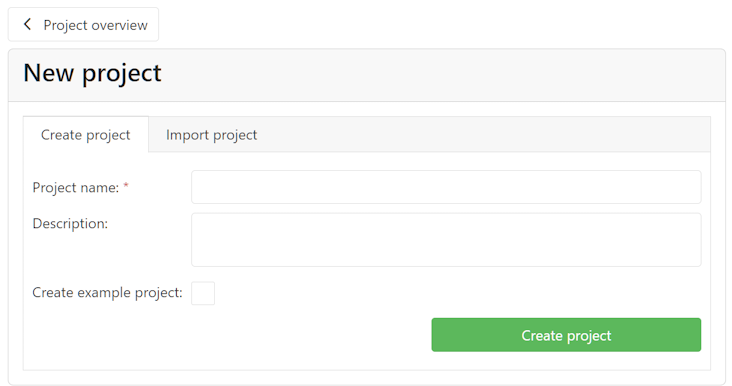

Figure 3 - Create a new project

In order to import an existing project, it must first be selected via the

button.

Note:

Only files with the extension *.simqueue can be imported.

Then, just as when creating a new project, a project name must be assigned. If a local project with the same name already exists, the name must be changed in the Project Name field (see Figure 4).

20250904_local_projects_create_new_name_exists

Figure 4 - Project name already asigned

By clicking the button

the creation of the project can be completed. This automatically changes the view back to the project overview.

You can return to the project overview at any time by clicking the button

3. Edit a local project

The button

can be used to call the context menu for each local project. Form here the project can be edited by clicking on the button

This opens a new window in which the project properties (Project Name and Description) can be edited.

A click on the button

completes the editing of the project. This automaticall changes the view back to the project window.

4. Duplicate local project

The button

can be used to call the context menu for each local project. Form here the project can be edited by clicking on the button

This opens a dialog where the name of the duplicated project and the alternatives (if available) to be duplicated can be edited.

5. Export local project as a file

The button

can be used to call the context menu for each local project. Form here the project can be exported by clicking on the button

When exporting a project a dialog opens where you must define what is to be exported, whereby at least one entry must be selected. Optionally, you can also export photos that have been taken using this dialog.

By confirming the dialog (click on export), the Windows Explorer opens in which the path can be selected. The project is then saved as a *.simqueue file under the selected path and can be exchanged or archived offline, for example.

6. Delete a local project

The button

can be used to call the context menu for each local project. Form here the project can be deleted by clicking on the button

When deleting a project, the following note is also displayed (see Figure 5). If this dialog is confirmed with Yes, the project will be deleted and cannot be restored anymore!

20250904_dialog_delete

Figure 5 - Note when deleting a project

7. Upload a local project to the server

By clicking the button

the respective project can be uploaded to the server. The project is then available in the Server Projects tab.

Note:

Each local project has its own ownership or ownership rights. This ownership is also stored when uploading a project to the project server.

This authorizes only the user to manage shares, remove, or override the server project.

If a project (or its unique project ID) is already contained on the server, an appropriate security prompt appears before overwriting.
